I2C communication in PSLab Android

PSLab device is a compact electronic device with a variety of features. One of them is the ability to integrate sensors and get readings from them. One might think that why they should use PSLab device to get sensor readings and they can use some other hardware like Arduino. In those devices, user has to create firmware and need to know how to interface them with correct sampling rates and settings. But with PSLab, they all come in the whole package. User just have to plug the device to his phone and the sensor to device and he’s ready.

The idea of this blog post is to show how this sophisticated process is actually happening. Before that, let me give you a basic introduction on how I2C communication protocol works. I2C protocol is superior to UART and SPI protocols as they are device limited or requires many wires. But with I2C, you can literally connect thousands of sensors with just 4 wires. These wires are labeled as follows;

  • VCC – Power line
  • GND – Ground line
  • SDA – Data line
  • SCL – Signal clock

It is required that the SDA and SCL lines need to be connected to VCC line using two pull up resistors. But that’s just hardware. Let’s move on to learn how I2C communicate.

Here there is this communicating concept called master and slave. To start communication, master issues a global signal like a broadcast to all the devices connected to SCL and SDA lines. This signal contains the address of the slave, master needs to address and get data from. If the slave received this call to him, he will pull down the SDA line to signal the master that he heard him and ready to communicate with him. Here communication means reading or writing data. Then the communication happens and the link between master and slave breaks giving opportunity to other masters and slaves.

One might think this is a slow process. But these signals are transmitted at high frequencies. In PSLab it is at 100 kHz and that is one millisecond.

PSLab library has a special class to handle I2C communication. That is

public class I2C {/**/}



Once this class is initiated, one has to call the start function to start communication. This method requires the address we wish to communicate with and the mode of operation stating if it is a read or write operation

public int start(int address, int rw) throws IOException {
   packetHandler.sendByte(commandsProto.I2C_HEADER);
   packetHandler.sendByte(commandsProto.I2C_START);
   packetHandler.sendByte((address << 1) | rw & 0xff);
   return (packetHandler.getAcknowledgement() >> 4);
}



Once the address is sent out, protocol requires us to stop and wait for acknowledgement.

public void wait() throws IOException {
   packetHandler.sendByte(commandsProto.I2C_HEADER);
   packetHandler.sendByte(commandsProto.I2C_WAIT);
   packetHandler.getAcknowledgement();
}



If there are no congestion in the lines such as reading from multiple devices, the acknowledgement will be instantaneous. Once that is complete, we can start communication either byte-wise or bulk-wise

public int send(int data) throws IOException {
   packetHandler.sendByte(commandsProto.I2C_HEADER);
   packetHandler.sendByte(commandsProto.I2C_SEND);
   packetHandler.sendByte(data);
   return (packetHandler.getAcknowledgement() >> 4);
}



As an example, reading sensor values at a given interval can be done using the following method call.

public ArrayList<Byte> read(int length) throws IOException {
   ArrayList<Byte> data = new ArrayList<>();
   for (int i = 0; i < length - 1; i++) {
       packetHandler.sendByte(commandsProto.I2C_HEADER);
       packetHandler.sendByte(commandsProto.I2C_READ_MORE);
       data.add(packetHandler.getByte());
       packetHandler.getAcknowledgement();
   }
   packetHandler.sendByte(commandsProto.I2C_HEADER);
   packetHandler.sendByte(commandsProto.I2C_READ_END);
   data.add(packetHandler.getByte());
   packetHandler.getAcknowledgement();
   return data;
}



Once we get the data bundle, either we can save them or display in a graph whatever the way it’s convenient.

Reference:

  1. https://en.wikipedia.org/wiki/I%C2%B2C

Continue Reading

Setting up environment to build PSLab Android app using Fdroid Build

Fdroid is a place for open source enthusiasts and developers to host their Free and Open Source Software (FOSS) for free and get more people onboard into their community. In order to host an app in their repository, one has to go through a several steps of builds and tests. This is to ensure that the software provided by them are as quality and safe as they can ever be. They are not allowing proprietary libraries or tools to integrate into any app or they will  be published outside the Fdroid main repository (fdroid-data) so that the users will know what they are downloading.

In a normal Linux computer where we are developing Android apps and have setup Android Studio will not be able to run the build command using:

$ fdroid build -v -l org.fossasia.pslab

The reason behind this is that we have not installed gradle and build tools required by the “fdroid build” because they are not useful in our day today activities for standalone activities. First thing we need to do is, install gradle separately. This will include adding gradle to $PATH as well.

Download the latest gradle version zip file or the version your project is using with the following command. In PSLab Android app, we are using 4.5.1 version and the snippet below include that version.

$ wget https://services.gradle.org/distributions/gradle-4.5.1-bin.zip

Next step is to install this in a local folder. We can select any path we want, but /opt/ folder is generally used in such scenarios.

sudo mkdir /opt/gradle
sudo unzip -d /opt/gradle gradle-4.5.1-bin.zip

Then we can add gradle to our $PATH variable using the following command:

$ export PATH=$PATH:/opt/gradle/gradle-4.5.1/bin

Now we are all set with gradle settings. Next step is to verify that the fdroid server is properly configured and up to date. When you run the build command after setting up the gradle in PC, it will throw an error similar to “failed to find any output apks”. This causes if the installed fdroid server version is old.

Fdroid server is running on python 3 and it will require some additional libraries pre-installed to properly function.

$ sudo apt-get install vagrant virtualbox git python3-certifi python3-libvirt python3-requestbuilder python3-yaml python3-clint python3-vagrant python3-paramiko python3-pyasn1 python3-pyasn1-modules

Once these libraries are installed, remove the previous instance of fdroidserver by using the following command:

$ sudo apt-get remove fdroidserver

Then we can reinstall the latest version of fdroid server from git using the following command:

$ git clone https://gitlab.com/fdroid/fdroidserver.git
export PATH="$PATH:$PWD/fdroidserver"

Now we are all set to do a brand new lint build on our PC to make our app ready to be published in Fdroid repository!

Reference:

  1. Install gradle : https://www.vultr.com/docs/how-to-install-gradle-on-ubuntu-16-10
  2. Gradle versions : https://gradle.org/releases
  3. Setting up Fdroid-server : https://f-droid.org/en/docs/Build_Server_Setup/

Installing fdroidserver : https://gitlab.com/fdroid/fdroiddata/blob/master/README.md#quickstart

Continue Reading

Building PSLab Android app with Fdroid

Fdroid is a place for open source enthusiasts and developers to host their Free and Open Source Software (FOSS) for free and get more people onboard into their community. Hosting an app in Fdroid is not a fairly easy process just like hosting one in Google Play. We need to perform a set of build checks prior to making a merge request (which is similar to pull request in GitHub) in the fdroid-data GitLab repository. PSLab Android app by FOSSASIA has undergone through all these checks and tests and now ready to be published.

Setting up the fdroid-server and fdroid-data repositories is one thing. Building our app using the tools provided by fdroid is another thing. It will involve quite a few steps to get started. Fdroid requires all the apps need to be built using:

$ fdroid build -v -l org.fossasia.pslab



This will output a set of logs which tell us what went wrong in the builds. The usual one in a first time app is obviously the build is not taking place at all. The reason is our metadata file needs to be changed to initiate a build.

Build:<versioncode>,<versionname>
    commit=<commit which has the build mentioned in versioncode>
    subdir=app
    gradle=yes



When a metadata file is initially created, this build is disabled by default and commit is set to “?”. We need to fill in those blanks. Once completed, it will look like the snippet above. There can be many blocks of “Build” can be added to the end of metadata file as we are advancing and upgrading through the app. As an example, the latest PSLab Android app has the following metadata “Build” block:

Build:1.1.5,7
    commit=0a50834ccf9264615d275a26feaf555db42eb4eb
    subdir=app
    gradle=yes



In case of an update, add another “Build” block and mention the version you want to appear on the Fdroid repository as follows:

Auto Update Mode:Version v%v
Update Check Mode:Tags
Current Version:1.1.5
Current Version Code:7



Once it is all filled, run the build command once again. If you have properly set the environment in your local PC, build will end successfully assuming there were no Java or any other language syntax errors.

It is worth to mention few other facts which are common to Android software projects. Usually the source code is packed in a folder named “app” inside the repository and this is the common scenario if Android Studio builds up the project from scratch. If this “app” folder is one level below the root, that is “android/app”, the build instructions shown above will throw an error as it cannot find the project files.

The reason behind this is we have mentioned “subdir=app” in the metadata file. Change this to “subdir=android/app” and run the build again. The idea is to direct the build to find where the project files are.

Apart from that, the commit can be represented by a tag instead of a long commit hash. As an example, if we had merge commits in PSLab labeled as “v.<versioncode>”, we can simply use “commit=v.1.1.5” instead of the hash code. It is just a matter of readability.

Happy Coding!

Reference:

  1. Metadata : https://f-droid.org/docs/Build_Metadata_Reference/#Build
  2. PSLab Android app Fdroid : https://gitlab.com/fdroid/fdroiddata/merge_requests/3271/diffs

Continue Reading

How Switch Case improve performance in PSLab Saved Experiments

PSLab android application contains nearly 70 experiments one can experiment on using the PSLab device and the other necessary circuit components and devices. These experiments span over areas such as Electronics, Electrical, Physical and High school level. All these experiments are accessible via an android adapter in the repository named “PerformExperimentAdapter”. This adapter houses a tab view with two different tabs; one for the experiment details and the other for actual experiment and resultant graphs.

The adapter extends an inbuilt class FragmentPagerAdapter;

public class PerformExperimentAdapter extends FragmentPagerAdapter

This class displays every page attached to its viewpager as a fragment. The good thing about using fragments is that they have a recyclable life cycle. Rather than creating new views for every instance of an experiment, the similar views can be recycled to use once again saving resources and improving performance. FragmentPagerAdapter needs to override a method to display the correct view on the tab select by user.

@Override
public Fragment getItem(int position) {

}

Depending on the value of position, relevant experiment documentation and the experiment implementation fragments are displayed determined using the experiment title. Performance can be critical in this place as if it takes too long to process and render a fragment, user will feel a lag.

The previous implementation was using consecutive if statements.

@Override
public Fragment getItem(int position) {
   switch (position) {
       case 0:
           if (experimentTitle.equals(context.getString(R.string.diode_iv)))
               return ExperimentDocFragment.newInstance("D_diodeIV.html");
           if (experimentTitle.equals(context.getString(R.string.zener_iv)))
               return ExperimentDocFragment.newInstance("D_ZenerIV.html");
           ...
       case 1:
           if (experimentTitle.equals(context.getString(R.string.diode_iv)))
               return ZenerSetupFragment.newInstance();
           if (experimentTitle.equals(context.getString(R.string.zener_iv)))
               return DiodeExperiment.newInstance(context.getString(R.string.half_wave_rectifier));
           ...
       default:
           return ExperimentDocFragment.newInstance("astable-multivibrator.html");
   }
}

This setup was suitable for applications where there is less than around 5 choices to chose between. As the list grows, the elements in the end of the if layers will take more time to load as each of the previous if statements need to be evaluated false in order to reach the bottom statements.

This is when this implementation was replaced using switch case statements instead of consecutive if statements. The theory behind the performance improvement involves algorithm structures; Hash Tables

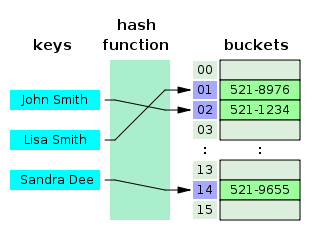

Hash Tables

Hash tables use a hash function to calculate the index of the destination cell. This operation on average has a complexity of O(1) which means it will take the same time to access any two elements which are randomly positioned.

This is possible because java uses the hash code of the string to determine the index where the target is situated at. This way it is much faster than consecutive if statement calls where in the worst case it will take O(n) time to reach the statement causing a lag in the application.

Current application uses switch cases in the PerformExperimentAdapter;

@Override
public Fragment getItem(int position) {
   switch (position) {
       case 0:
           switch (experimentTitle) {
               case "Diode IV Characteristics":
                   return ExperimentDocFragment.newInstance("D_diodeIV.html");
               case "Zener IV Characteristics":
                   return ExperimentDocFragment.newInstance("D_ZenerIV.html");
               case "Half Wave Rectifier":
                   return ExperimentDocFragment.newInstance("L_halfWave.html");
           }
       case 1:
           switch (experimentTitle) {
               case "Diode IV Characteristics":
                   return ZenerSetupFragment.newInstance();
               case "Zener IV Characteristics":
                   return ZenerSetupFragment.newInstance();
               case "Half Wave Rectifier":
                   return DiodeExperiment.newInstance(context.getString(R.string.half_wave_rectifier));
           }
       default:
           return ExperimentDocFragment.newInstance("astable-multivibrator.html");
   }
}

There is one downfall in using switch case in the context. That is the inability to use string resources directly as Java requires a constant literals in the evaluation statement of a case.

Resources:

Continue Reading

Basics behind school level experiments with PSLab

Electronics is a fascinating subject to most kids. Turning on a LED bulb, making a simple circuit will make them dive into much more interesting areas in the field of electronics. PSLab android application with the help of PSLab device implements a set of experiments whose target audience is school children. To make them more interested in science and electronics, there are several experiments implemented such as measuring body resistance, lemon cell experiment etc.

This blog post brings out the basics in implementing these type of experiments and pre-requisite.

Lemon Cell Experiment

Lemon Cell experiment is a basic experiment which will make school kids interested in science experiments. The setup requires a fresh lemon and a pair of nails which is used to drive into the lemon as illustrated in the figure. The implementation in PSLab android application uses it’s Channel 1. The cell generates a low voltage which can be detected using the CH1 pin of PSLab device and it is sampled at a rate of 10 to read an accurate result.

float voltage = (float) scienceLab.getVoltage("CH1", 10);

2000 instances are recorded using this method and plotted against each instance. The output graph will show a decaying graph of voltage measured between the nails driven into the lemon.

for (int i = 0; i < timeAxis.size(); i++) {
   temp.add(new Entry(timeAxis.get(i), voltageAxis.get(i)));
}

Human Body Resistance Measurement Experiment

This experiment attracts most of the young people to do electronic experiments. This is implemented in the PSLab android application using Channel 3 and the Programmable Voltage Source 3 which can generate voltage up to 3.3V. The experiment requires a human with drippy palms so it makes a good conductance between device connection and the body itself.

The PSLab device has an internal resistance of 1M Ohms connected with the Channel 3 pin. Experiment requires a student to hold two wires with the metal core exposed; in both hands. One wire is connected to PV3 pin when the other wire is connected to CH3 pin. When a low voltage is supplied from the PV3 pin, due to heavy resistance in body and the PSLab device, a small current in the range of nano amperes will flow through body. Using the reading from CH3 pin and the following calculation, body resistance can be measured.

voltage = (float) scienceLab.getVoltage("CH3", 100);
current = voltage / M;
resistance = (M * (PV3Voltage - voltage)) / voltage;

This operation is executed inside a while loop to provide user with a continuous set of readings. Using Java threads there is a workaround to implement the functionalities inside the while loop without overwhelming the system. First step is to create a object without any attribute.

private final Object lock = new Object();

Java threads use synchronized methods where other threads won’t start until the first thread is completed or paused operation. We make use of that technique to provide enough time to read CH3 pin and display output.

while (true) {
   new MeasureResistance().execute();
   synchronized (lock) {
       try {
           lock.wait();
       } catch (InterruptedException e) {
           e.printStackTrace();
       }
   }
}

Once the pin readings and value updates are complete the lock is released to execute the method once again.

updateDataBox();
synchronized (lock) {
   lock.notify();
}

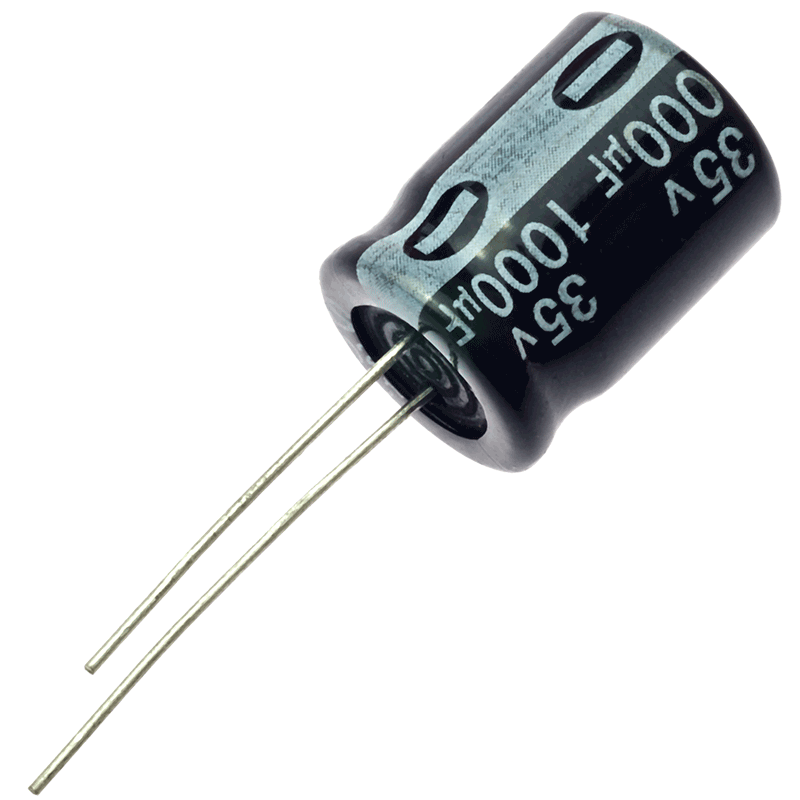

Capacitor Discharge Experiment

This experiment is somewhat similar to the Lemon Cell Experiment as this experiments on electron storage and discharge. The experiment is carried out using two bulky electrolyte capacitors. PSLab device is capable of generating PWM waveforms with any duty cycle. Refer to this article to learn more about how PWM waves are generated using PSLab device to implement more features like sine wave generation.

Using the SQR1 pin of the PSLab device, one capacitor is charged to its fullest capacity using a PWM wave with 100% duty cycle at a 100 Hz.

scienceLab.setSqr1(100, 100, false);

This capacitor is then connected in parallel with the other capacitor which is empty. The voltage transfer is measured using CH1 pin at a sampling rate of 10

float voltage = (float) scienceLab.getVoltage("CH1", 10);

To provide a continuous update in the voltage transfer, a similar implementation is used using an object in the thread to control the implementation inside a while loop.

Resources:
